Editor

In-game LED placement, Arges spotlights, pattern sequencing, trigger rules, and siren configuration.

Overview

/telsedit opens the editor while you're in a vehicle (any seat). Requires the tlib.admin ACE.

Tab workflow

Work the tabs in this order — each builds on the previous one.

LEDs — place (or auto-generate) the physical lights on the vehicle using a Three.js gizmo.
Patterns — arrange those LEDs into frame-by-frame flash sequences with live preview.
Triggers — compound condition rules that drive patterns, stages, and sirens from vehicle state.
Sirens — tone slots, airhorn, rumbler, and chirp sounds.
Settings — per-vehicle siren behavior (horn interrupt, park kill, suspend flags).
Arges (optional) — attach and aim spotlight props.

All tabs share a single orbit camera. Press Enter at any point to save every tab at once; Escape to cancel without saving.

Camera controls

Input	Action
Middle Mouse	Orbit around the vehicle
Shift + MMB	Pan
Shift + Ctrl + MMB	Dolly (zoom)
Scroll Wheel	Zoom

View-snap buttons and a "focus on selection" control are available in the sidebar.

New to a vehicle? Click Create from siren bones in the sidebar. tELS scans the vehicle's siren1…sirenN bones and drops a starter LED at each one, pre-grouped and sided. It's the fastest way to go from empty editor to a working lightbar — you can refine positions after.

Click any LED in the 3D viewport or the sidebar list to select it. The gizmo appears at the selection center. Hold Shift+click for range select or Ctrl+click to toggle individual LEDs in the selection.

LED properties

Property	Description
Position `x, y, z`	Local offset from the vehicle chassis, or from `bone` if one is set
Rotation `yaw, pitch, roll`	Orientation in degrees — drives directional bloom / corona output
Size `sw, sh`	Surface width and height in metres
Side	`1` Right, `2` Left, `3` Center — used by traffic-advisor patterns
Name	Display name (e.g., "Front Right 1")
Groups	Tags used to bulk-select and filter in the pattern editor
Bone	Optional vehicle bone name (e.g., `siren1`, `door_dside_f`)
Shape	`rect` (default) or `circle`
Bloom	`sprite`, `corona`, or `both`
Extra	Optional GTA vehicle-extra ID (1–15). LED only renders when that extra is enabled on the spawned vehicle.

Identity

Every LED carries a 16-char hex UUID. Patterns reference LEDs by this UUID, never by name or array position — renaming, reordering, or regrouping LEDs never breaks a saved pattern.

Bone attachment

When bone is set, x/y/z and yaw/pitch/roll are interpreted in the bone's local frame, so LEDs on doors, the hood, or the trunk move with those parts as they open.

Multi-select operations

With multiple LEDs selected you can:

Move, rotate, or scale them together
Duplicate (Shift+D)
Mirror left-to-right around the vehicle's centerline (Shift+M)
Swap positions (pairs)
Delete (Delete or Backspace)
Batch-edit any shared property in the properties panel

Keyboard shortcuts (LEDs tab)

Shortcut	Action
W / R / S	Switch the gizmo to translate, rotate, or scale
X	Toggle between world-space and local-space gizmo
Q / E	Select previous / next LED
Shift+D	Duplicate selected LEDs
Shift+M	Mirror selected LEDs
Delete / Backspace	Remove selected LEDs
Ctrl (held)	Temporarily toggle grid snap

Global shortcuts (all tabs): Ctrl+Z / Ctrl+Y undo/redo · Enter save and exit · Escape cancel and exit.

Arges tab

Arges spotlights are attachable light props (base + head + arm) that track an aim direction. They're useful for roof-mounted worklights or side spotlights.

Each Arges entry has:

Property	Description
Position `x, y, z`	Anchor point on the vehicle
Rotation `rx, ry, rz`	Base orientation
Arm	`curve` or `straight` — changes which arm prop is used
Bone	Optional bone attachment

At runtime the player aims the head with Numpad 8/5/4/6. Aim angles sync to other clients via state bags, so everyone sees the same beam direction.

Patterns tab

A grid sequencer — columns are frames, rows are LEDs. The pattern previews live on the vehicle as you edit.

Creating a pattern

Add the pattern

Click Add Pattern in the sidebar.

Set the FPS

All frame durations are measured in ticks at this rate.

Define the color palette

Add RGB colors with optional alpha and a name. Each pattern owns its own palette.

Paint cells

Click cells in the grid to assign colors. A cell value of 0 is off.

Color palette

Each pattern owns its palette. Palette entries have r, g, b, optional a, and a name. Cell values are 1-based indices into the palette.

Frame timing

Each frame has a duration in ticks. At 10 FPS, duration: 1 = 100 ms, 2 = 200 ms, etc.

Smooth dimming

Any cell can be marked dimmable — its color interpolates smoothly into the next frame instead of snapping. Click the ~ button next to a frame row to toggle dim on every cell in that frame at once.

Pattern options

Option	Effect
Trigger Only	Hidden from 9/0 cycling. Only activatable via trigger actions.
Sync Near	All clients sync the frame index to a server-derived clock — everyone sees the same frame at the same time. Use for synchronized fleet patterns.
Use Emergency Lights	While this pattern is active, GTA's native emergency-lights flag is enabled (drives the red-blue environment tint the game applies to emergency vehicles).
Use High Beams	High beams are held on while this pattern is active.
Livery	Restricts this pattern to a specific livery index. Omit for any livery.

Keyboard shortcuts (Patterns tab)

Shortcut	Action
Space	Play / pause the live preview
Ctrl+Z / Ctrl+Y	Undo / Redo (global)

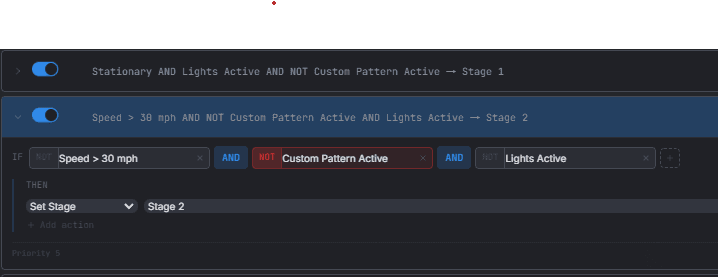

Triggers tab

Each trigger is a rule: IF a compound of conditions is true, THEN run one or more actions.

Building a trigger

Add the trigger

Click Add Trigger in the sidebar.

Pick conditions

Add one or more conditions from the reference below, and choose AND (all must be true) or OR (any suffices).

Negate where needed

Toggle the NOT modifier on individual conditions for "only when X is not true".

Attach actions

Actions run in list order. Most triggers just overlay or switch a pattern; see the action reference below for the rest.

Order by priority

Drag triggers in the list to reorder. Pattern overlays stack in list order, so later triggers paint on top of earlier ones.

Condition reference

Lights & stages

Condition	Fires when
`lights_on`	Emergency lights active
`stage_1` / `stage_2` / `stage_3`	Vehicle is at that stage
`park_kill`	Driver exited with sirens running; park kill fired
`chirping`	Chirp tone is playing

Audio

Condition	Fires when
`siren`	Any siren active (main, aux, or burst)
`main_siren_on`	Main siren active
`aux_siren_on`	Aux siren active
`rumbler`	Rumbler variant playing
`airhorn`	Airhorn playing
`horn_tap`	Horn tapped (< 400 ms press)
`horn_double_tap`	Horn double-tapped (< 600 ms between taps)
`horn_hold`	Horn held (> 500 ms)
`siren_tone_1` … `siren_tone_8`	Main siren is playing this specific tone

Modes

Condition	Fires when
`cruise`	Cruise mode on
`takedown`	Takedown mode on
`ta_left` / `ta_right` / `ta_center`	Traffic advisor in that direction

Vehicle state

Condition	Fires when
`engine_on` / `engine_off`	Engine running / stopped
`stationary`	Speed below 2 mph
`speed_15` / `speed_30` / `speed_60` / `speed_90`	Speed above that mph threshold
`headlights`	Headlights on
`highbeam`	High beams on
`day` / `night`	In-game clock (`night` = 20:00–05:00)

Controls

Condition	Fires when
`brake`	Brake pedal engaged
`handbrake`	Handbrake engaged
`reverse`	Reverse gear + actually moving backward
`turn_left` / `turn_right`	Turn signal on
`hazards`	Hazards on

Doors

Condition	Fires when
`door_fl` / `door_fr` / `door_rl` / `door_rr`	That door is open
`hood`	Hood open
`trunk`	Trunk open
`any_door_open`	Any of the above
`locked`	Vehicle locked

Health

Condition	Fires when
`vehicle_damaged`	Body health under 900
`flipped`	Vehicle upside-down

Occupancy

Condition	Fires when
`driver_in_veh`	Driver seat occupied
`passenger_front` / `passenger_rear`	Specific seats occupied
`any_passenger`	Any passenger seat occupied
`presence`	Presence mode armed + on-foot player (not another tELS owner) in range
`presence_mode`	Presence mode armed + owner away + vehicle locked

Action types

Action	Effect
pattern_overlay	Layer a pattern on top of the base while the rule is true. Overlays stack in list order.
pattern_set	Switch the base pattern on rising edge (once when the rule becomes true).
stage_set	Activate a specific stage (1–3). Rising edge only.
main_siren_set	Start the main siren on a specific tone.
aux_siren_set	Start the aux siren on a specific tone.
siren_overlay	Play a tone while the rule is true; stops automatically on false.
siren_next_tone / siren_prev_tone	Cycle the main siren's tone.
park_chirp	Fire a single park chirp (rising edge).
chirp_stop	Stop an in-progress chirp.
horn_play_airhorn	Play the airhorn while the rule is true (respects horn interrupt).
horn_play_vehicle_horn	Play the native vehicle horn while the rule is true.
arges_on / arges_off	Enable or disable the Arges spotlight.
arges_sweep	Run a sweep animation while the rule is true.

Rising edge vs held: actions like pattern_set, stage_set, and park_chirp only fire the moment a rule becomes true. pattern_overlay, siren_overlay, and horn_play_airhorn run continuously while the rule is true and stop automatically on false.

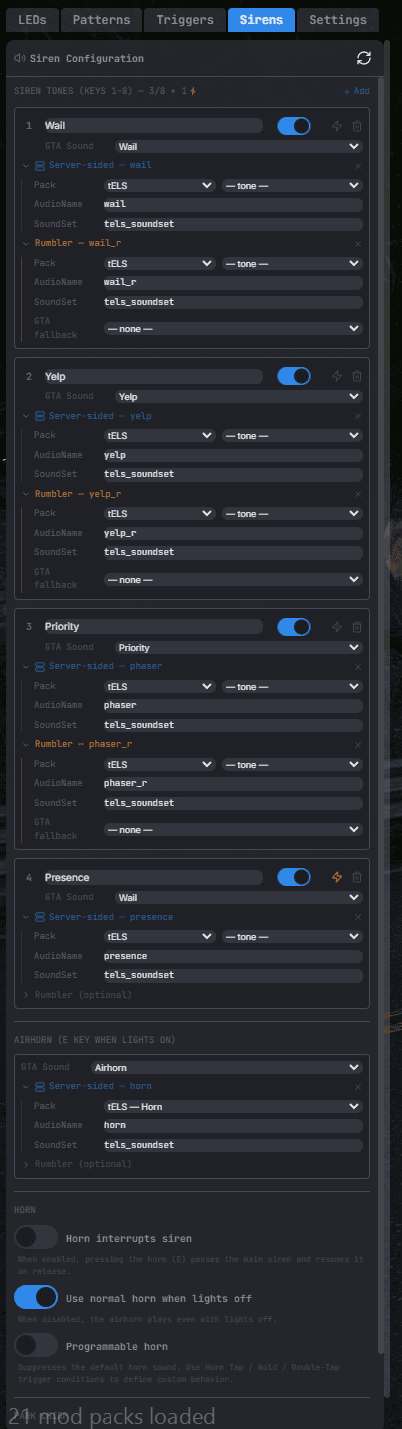

Sirens tab

Tone slots

Up to 8 tone slots. Each slot:

Property	Description
Name	Display name ("Wail", "Yelp", "Priority")
Sound	Vanilla GTA sound string (e.g., `VEHICLES_HORNS_SIREN_1`)
Server Sound / Server Sound Ref	Custom server-bundled audio. Used when `Server-sided Sirens` is on in `/tels`.
Rumbler Sound / Rumbler Server Sound	Alternate sounds when the rumbler mode is on. Only applies to the main siren.
Enabled	Off slots are skipped by every lookup
Trigger Only	Skipped by R, 1-8, and tone cycling, but usable by trigger actions

Airhorn

Separate vanilla / server / rumbler-server fields for the airhorn. Falls back to the default SIRENS_AIRHORN soundset if nothing is configured.

Chirp

Field	Description
Chirp Tone	Which tone slot plays on the park chirp
Play Full Siren (`chirpByCode`)	Hold the tone for the entire chirp duration instead of short 75–125 ms blips. Use this when your audio file already contains the chirp envelope.

Settings tab

Per-vehicle siren behavior. These apply only to the vehicle you're editing.

Setting	Default	Description
Horn Interrupt	On	Main siren pauses while the airhorn plays, resumes on release
Park Kill	On	Sirens stop when the driver exits; fires the `park_kill` trigger condition
Use Normal Horn	On	`E` plays the native vehicle horn when lights are off. Turn off to make the airhorn play regardless.
Programmable Horn	Off	Skip the default horn/airhorn audio and interrupt. Triggers drive the horn with `horn_tap` / `horn_hold` / `horn_double_tap`.
Lights Suspend TA	On	Traffic advisor suspends when lights activate
Lights Suspend Takedown	On	Takedown suspends when lights activate

Cross-vehicle references

Open the reference menu on any pattern, trigger, siren, or settings block to import it from another vehicle model instead of duplicating.

Imported items display a link icon; items referenced by other vehicles display a share icon.
Editing a referenced pattern or trigger edits the source. Changes propagate to every vehicle that references it.
Bulk references ($all) import every non-referenced pattern or trigger from the source in one go.

See Configuration › Cross-Vehicle References for the underlying data format.

Saving

Save persists all tabs at once to data.json and broadcasts the updated config to every client. If you edited a referenced pattern or trigger, a separate ref-edit event is sent to update the source.

Undo history clears on save.
