Configuration

Configuration Overview

Two sources:

data.json changes broadcast to clients immediately — no restart.

config.lua Reference

Network & Authentication

Config = {
    serverAddress = "",           -- Connection URL sent to clients. Leave empty for auto-detect.
                                  -- Set to "http://IP:PORT/" if using a proxy or specific IP.
    serverPort    = 7777,         -- Port for voice server and dispatch panel
    authToken     = "changeme",   -- Secret key for API authentication. Change this.
    dispatchNacId = "141",        -- Dispatch panel login password
}

General

Config = {
    checkForUpdates = true,       -- Check for updates on resource start
    healthCheck     = true,       -- Run port reachability check on start
    logLevel        = 3,          -- 0=Error, 1=Warn, 2=Minimal, 3=Normal, 4=Debug, 5=Verbose
    useDiscordAuth  = false,      -- Use Discord OAuth for dispatch panel (see Dispatch Panel page)
}

Keybinds

Config.controls = {
    talkRadioKey       = "B",     -- Push-to-talk
    toggleRadioKey     = "F6",    -- Open/close radio
    closeRadioKey      = "",      -- Close radio only (separate from toggle)
    powerBtnKey        = "",      -- Power on/off
    channelUpKey       = "",      -- Next channel
    channelDownKey     = "",      -- Previous channel
    zoneUpKey          = "",      -- Next zone
    zoneDownKey        = "",      -- Previous zone
    menuUpKey          = "",      -- Navigate menu up
    menuDownKey        = "",      -- Navigate menu down
    menuRightKey       = "",      -- Navigate menu right
    menuLeftKey        = "",      -- Navigate menu left
    menuHomeKey        = "",      -- Return to menu home
    menuBtn1Key        = "",      -- Menu button 1 (context-dependent)
    menuBtn2Key        = "",      -- Menu button 2 (context-dependent)
    menuBtn3Key        = "",      -- Menu button 3 (context-dependent)
    emergencyBtnKey    = "",      -- Panic / emergency button
    styleUpKey         = "",      -- Next radio model
    styleDownKey       = "",      -- Previous radio model
    voiceVolumeUpKey   = "EQUALS",   -- Voice volume up
    voiceVolumeDownKey = "MINUS",    -- Voice volume down
    sfxVolumeUpKey     = "RBRACKET", -- SFX volume up
    sfxVolumeDownKey   = "LBRACKET", -- SFX volume down
    volume3DUpKey      = "",         -- 3D audio volume up
    volume3DDownKey    = "",         -- 3D audio volume down
    -- Leave empty ("") to disable a keybind.
    -- Players can also rebind any of these in FiveM → Settings → Key Bindings → FiveM.
}

Signal Towers

Tower positions for the signal-strength icon and optional audio degradation.

Config.signalTowerCoordinates = {
    { x = 1860.0,  y = 3677.0,  z = 33.0 },
    { x = 449.0,   y = -992.0,  z = 30.0 },
    -- Add, remove, or move coordinates to match your map
}

The radio shows more signal bars when closer to a tower. When signal degradation is enabled (via admin panel), distance also affects audio quality — further from towers means more garbled audio with random dropouts.

Battery

The batteryTick callback controls battery drain and charge rates.

Config.batteryTick = function(currentBattery, deltaTime)
    local vehicle = GetVehiclePedIsIn(PlayerPedId(), false)
    if vehicle ~= 0 then
        return math.min(100.0, currentBattery + (0.5 * deltaTime))  -- Charge in vehicle
    else
        return math.max(0.0, currentBattery - (0.1 * deltaTime))    -- Drain on foot
    end
end

Client Callbacks

talkCheck

Runs before each PTT transmission. Return false to block.

Config.talkCheck = function()
    if IsPlayerDead(PlayerId()) then return false end
    if IsPedSwimming(PlayerPedId()) then return false end
    -- Add custom conditions: handcuffs, tackle, etc.
    return true
end

bgSirenCheck

Determines if siren background SFX should play when a player transmits. Other players on the channel hear the siren looping behind the voice audio.

The default bgSirenCheck is provider-agnostic — it walks through four siren providers in order and uses the first one that claims ownership of the vehicle:

Return values:

Default behavior works out of the box — no changes needed if you just want the generic siren loop whenever any supported provider reports a siren active.

Per-Provider Tone Mapping

To play a specific WAV matching the active siren tone, fill in Config.sirenToneFiles. The default bgSirenCheck consults this table automatically; any unmapped tone (or an omitted provider) falls back to bgSiren.wav.

Config.sirenToneFiles = {
    -- tELS main/aux tone index (1-based, matches SIREN_TONES):
    --   1 = Wail, 2 = Yelp, 3 = Priority, 4 = Powercall, 5 = Custom
    tels = {
        -- [1] = "wail.wav",
        -- [2] = "yelp.wav",
    },
    -- LVC state_lxsiren tone index:
    --   1 = Airhorn, 2 = Wail, 3 = Yelp, 4 = Priority,
    --   5-10 = Custom A-F, 11 = Powercall, 12-14 = Fire tones
    lvc = {
        -- [2] = "wail.wav",
        -- [3] = "yelp.wav",
    },
    -- JLS exposes only a bool (no tone info) → always uses default bgSiren.wav.
    -- Native GTA sirens also fall through to default bgSiren.wav.
}

Drop the referenced WAVs into client/radios/default/sounds/. With [2] = "wail.wav" under lvc, a player running LVC wail hears sounds/wail.wav over the radio instead of the generic loop.

NotifySirenChanged Export

The siren state is polled every ~500ms to pick up changes. Custom ELS integrators that flip siren state outside the built-in providers' event paths can force an immediate re-poll (within one frame) by calling:

exports['tRadio']:NotifySirenChanged()

Call this right after flipping your backing flag. Useful when your ELS uses its own events rather than LVC's lvc:UpdateThirdParty or tELS' state bags.

Server Callbacks

These three functions run server-side and control who can use the radio and what they can access.

The string returned by getUserNacId is the player's NAC ID — the radio compares it against:

• Zone nacIds — player can see the zone only if their NAC ID is in the list
• Channel allowedNacs — player can connect and transmit only if their NAC ID is in the list
• Channel scanAllowedNacs — player can scan (listen only) if their NAC ID is in the list

-- Gate: who can use the radio at all (return false to block)
Config.radioAccessCheck = function(playerId)
    return true
end

-- Identity: NAC ID assigned to this player (matched against zones/channels)
Config.getUserNacId = function(serverId)
    return "141"
end

-- Display name shown on the radio and in the dispatch panel
Config.getPlayerName = function(serverId)
    return GetPlayerName(serverId)
end

For framework-specific examples (QBCore, ESX, Qbox job-based NAC IDs), see Framework Integration. When a player's job changes, call exports['tRadio']:refreshNacId(serverId) to update their access immediately.

ACE Permissions

As an alternative to the getUserNacId callback, you can assign permissions directly through FiveM ACE entries in server.cfg. ACE permissions are additive — they work alongside NAC IDs, so existing configs don't need to change.

NAC ID via ACE

Assign a NAC ID to a player or group without writing Lua code. If getUserNacId returns nil, the server checks for a matching tRadio.nac.* ACE:

# Give police group NAC ID "141"
add_ace group.police tRadio.nac.141 allow
add_principal identifier.steam:STEAM_ID group.police

# Give EMS NAC ID "110"
add_ace group.ems tRadio.nac.110 allow

Per-Frequency ACE Permissions

Grant access to specific frequencies without a NAC ID. The frequency is encoded by removing the decimal point (e.g., 154.815 → 154815).

# EMS can transmit on 154.755 and 154.815
add_ace group.ems tRadio.connect.154755 allow
add_ace group.ems tRadio.connect.154815 allow

# EMS can scan 856.1125
add_ace group.ems tRadio.scan.8561125 allow

# EMS can see GPS blips on 154.755
add_ace group.ems tRadio.gps.154755 allow

# EMS can access zone 1 (Statewide)
add_ace group.ems tRadio.zone.1 allow

Admin Radio Features via ACE

Players with the tlib.admin ACE permission (same permission used for the in-game admin panel) gain access to additional radio controls — the SGN alert button and trunked CT/TK toggle.

add_ace group.admin tlib.admin allow

Combining NAC IDs and ACE Permissions

A player's effective access is the union of their NAC ID permissions and ACE permissions. For example, a player with NAC ID "110" and tRadio.connect.154815 can access everything NAC "110" grants plus transmit on frequency 154.815.

When permissions change (e.g., a job update triggers refreshNacId), both NAC ID and ACE permissions are re-resolved and sent to the client. If a player loses access to their current channel, they are automatically disconnected.

How Access Resolves

1. Radio access — Config.radioAccessCheck(playerId) is the master gate. false = no radio at all.
2. NAC ID — Config.getUserNacId(serverId) first. If it returns nil/empty, fall back to tRadio.nac.* ACE. Neither = no NAC ID.
3. Zone visibility — NAC ID in Zone.nacIds or tRadio.zone.{N} ACE.
4. Connect + transmit — NAC ID in Channel.allowedNacs or tRadio.connect.{freq} ACE.
5. Scan — connect access, or NAC ID in Channel.scanAllowedNacs, or tRadio.scan.{freq} ACE.
6. GPS visibility — NAC ID in gps.visibleToNacs or tRadio.gps.{freq} ACE.
7. Admin controls — SGN + trunked CT/TK buttons require tlib.admin ACE.

refreshNacId(serverId) / refreshPlayerInfo() re-run this live. Players on an inaccessible channel are auto-disconnected.

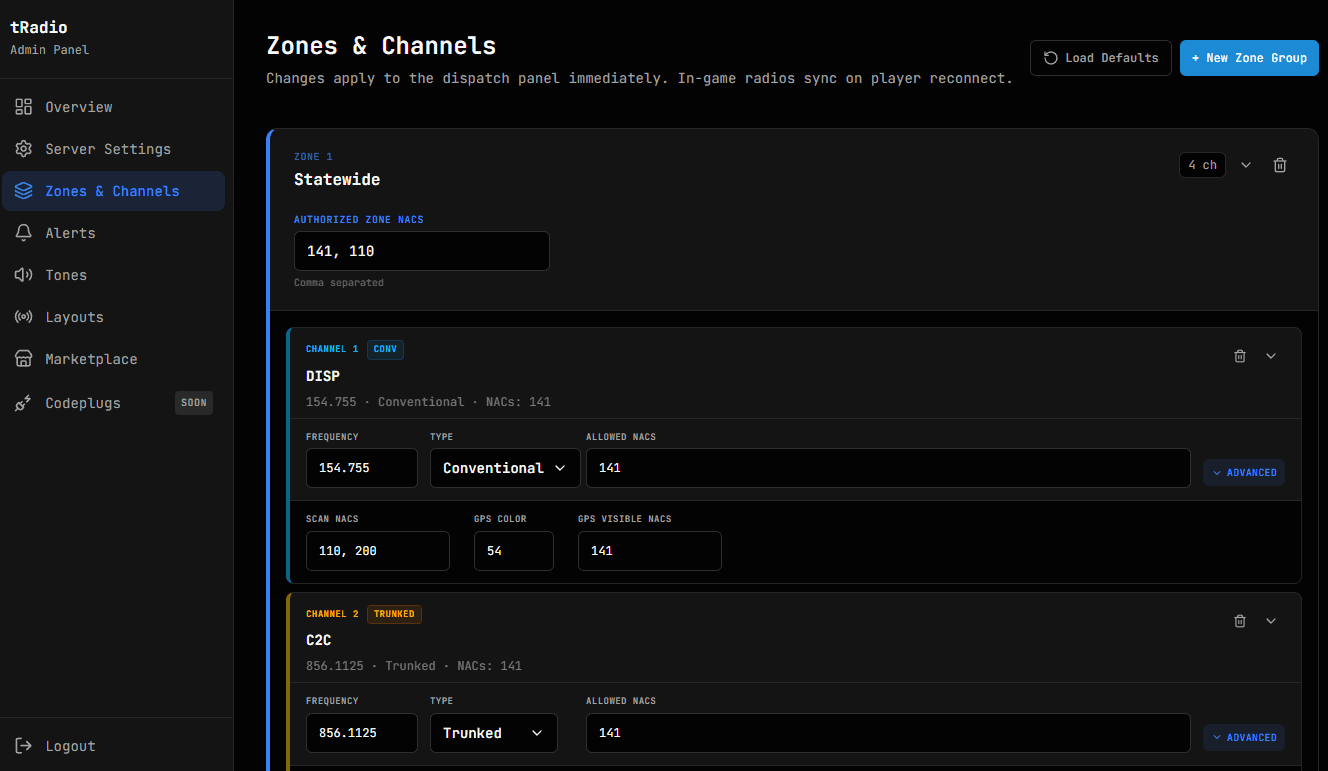

Zones & Channels

Zones group channels together. Players see zones based on their NAC ID matching the zone's nacIds list.

Zone Structure

Config.zones = {
    [1] = {
        name = "Statewide",
        nacIds = { "141", "200" },  -- NAC IDs that can see this zone
        Channels = {
            [1] = {
                name = "DISPATCH",
                type = "conventional",
                frequency = 154.755,
                allowedNacs = { "141" },
                scanAllowedNacs = { "200" },
                gps = {
                    color = 54,
                    visibleToNacs = { "141" },
                },
            },
        },
    },
}

Channel Types

Conventional

Single shared frequency — all connected players hear each other regardless of location.

{
    name = "DISPATCH",
    type = "conventional",
    frequency = 154.755,
    allowedNacs = { "141" },
    scanAllowedNacs = { "200" },
    gps = { color = 54, visibleToNacs = { "141" } },
}

Trunked

Location-based frequency assignment. Units at different locations get separate sub-frequencies automatically. Dispatchers can still broadcast to all units on the control frequency.

{
    name = "CAR-TO-CAR",
    type = "trunked",
    frequency = 856.1125,                  -- Control frequency
    frequencyRange = { 856.000, 859.000 }, -- Available range
    coverage = 500,                        -- Radius in meters
    allowedNacs = { "141" },
    gps = { color = 25, visibleToNacs = { "141" } },
}

Channel Field Reference

Alerts

Alerts are defined in Config.alerts. The first entry ([1]) is the default triggered by the in-game SGN button. Players whose NAC ID matches dispatchNacId can trigger it from the radio; all alerts can also be triggered from the dispatch panel or API.

Alert Lifecycle

Three phases, each with its own optional tone:

1. Activate — fires once on trigger. Banner shows on every radio connected or scanning the channel; tones.activate plays.
2. Repeat — isPersistent = true only. tones.repeat fires every repeatInterval ms (default: random 5–10 s). Banner flashes again unless repeatShowBanner = false. Each channel has its own timer.
3. Deactivate — fires once when cleared. tones.deactivate plays; green RESUME banner shows (overridable via deactivateLabel / deactivateColor).

One-shot alerts (isPersistent = false) run the activate phase only.

Tone Styles

Simple — one tone for all phases:

{
    name = "SIGNAL 3",
    color = "#0049d1",
    isPersistent = true,
    tone = "ALERT_A",
}

Per-phase — independent tones for activate, repeat, and deactivate:

{
    name = "SIGNAL 100",
    color = "#d19d00",
    isPersistent = true,
    tones = {
        activate   = "PRIORITY",
        ["repeat"] = "PRIORITY_REPEAT",
        deactivate = "ALERT_C",
    },
}

Any phase can be omitted — it falls back to the tone field, or plays nothing if absent.

Alert Field Reference

Examples

A mix of persistent and one-shot alerts covering common dispatch needs:

Config.alerts = {
    -- [1] is what the SGN button on the radio triggers by default
    [1] = {
        name = "SIGNAL 100",
        color = "#a38718",
        isPersistent = true,
        tones = {
            activate   = "PRIORITY",
            ["repeat"] = "PRIORITY_REPEAT",
            deactivate = "ALERT_C",
        },
        repeatInterval   = 15000,
        repeatShowBanner = false,
        deactivateLabel  = "RESUME",
        deactivateColor  = "#1a8a38",
    },

    -- Persistent with a single tone for every phase
    [2] = {
        name = "SIGNAL 3",
        color = "#1852a3",
        isPersistent = true,
        tone = "ALERT_A",
    },

    -- One-shot with banner + tone
    [3] = {
        name = "Ping",
        color = "#1852a3",
        tone = "ALERT_B",
    },

    -- Tone-only — plays sound, no banner
    [4] = {
        name = "Boop",
        color = "#1c4ba3",
        toneOnly = true,
        tone = "BONK",
    },
}

Triggering alerts

• In-game SGN button — fires Config.alerts[1] on the connected channel, press again to clear. Available to players whose NAC ID matches dispatchNacId or who have tlib.admin ACE.
• Dispatch panel — picks any alert, fires on one or all channels.
• Exports / HTTP — exports['radio']:setAlertOnChannel(freq, true, "Signal 100") or POST /radio/dispatch/alert/trigger. Takes the alert's name (case-insensitive) or 1-based index.

To restrict SGN to dispatchers, set dispatchNacId to a NAC ID only they return.

Admin Panel (data.json)

Settings managed through the in-game admin panel. Access requires the tlib.admin ACE permission.

Grant it in server.cfg:

add_ace identifier.steam:STEAM_ID tlib.admin allow

Or grant to a group:

add_ace group.admin tlib.admin allow
add_principal identifier.steam:STEAM_ID group.admin

Open via the /tradio command > Admin Settings.

Audio Settings

Radio FX

Two independent audio processors. Both toggle on/off separately; enabling both stacks them (analog applied after the vocoder).

Analog FX chain (fxEnabled) — classic radio sound. Signal path:

mic → inputGain → highpass → lowpass → softener EQ → compressor
    → limiter → tube saturation → mid EQ → voice volume → output

P25 IMBE vocoder (p25Enabled) — real P25 codec. See P25 / IMBE Vocoder below.

Tuning guidelines

P25 / IMBE Vocoder

WebAssembly build of op25's imbe_vocoder — the codec used by real P25 Phase 1 radios.

The sender encodes mic audio to IMBE frames once; every listener (in-game, dispatch panel, 3D bystander) decodes them locally. Same codec artefacts for everyone, no re-encoding per listener, ~3.7× smaller on the wire than Opus.

Decoded audio passes through a small EQ (100 Hz HP → +3 dB @ 1.5 kHz → 4 kHz LP) before the analog FX chain (if enabled).

Notes:

• First PTT of a session has a brief cold-start warm-up (self-resolves)
• First ~10 ms of a transmission may clip — adjust pttReleaseDelay if severe
• Works identically in the dispatch panel

Transmission Effects

Background sounds near the talker (sirens, helis, gunshots) broadcast over the channel.

• Sirens — driven by Config.bgSirenCheck. Return true for the default loop, or a WAV filename for per-tone playback. Populate Config.sirenToneFiles to map tELS / LVC tone indices to custom WAVs (see above)
• Helicopters — auto-triggered when the talker is in a heli with rotors spinning
• Gunshots — picked up during a transmission, broadcast to listeners and 3D bystanders

Bonking

Behaviour when a second player keys up while someone is already transmitting.

3D Audio

Broadcasts a player's radio output (voice, tones, sirens, heli, gunshots) in 3D space so nearby players hear it.

How 3D audio works

A player broadcasts in 3D while all of these are true: enable3DAudio = true, their Earbuds toggle is OFF, and they are transmitting, receiving, or playing a tone. Nearby players hear it spatialised within 100 m (person) or 200 m (vehicle) via Web Audio PannerNodes.

Earbuds only gates your outgoing 3D audio. You still hear others based on their earbud settings.

Vehicle radio (3D)

With vehicleRadio3DAudioEnabled = true, a player who enters a vehicle claims it as a 3D source. While they're inside, the player is the source; once they walk more than vehicle3DActivationDistance m away, the vehicle becomes the source at the longer 200 m range. The source hands back to the player when they return, and releases entirely when they disconnect.

One vehicle, one owner — another player can't claim it until the first releases.

Callsign System

Storage & Scope

Callsigns persist client-side in tLib KVP, namespaced by tlib_community_id (falling back to sv_projectName if unset). Two servers sharing the same community ID share callsigns across both; different IDs keep them isolated. The server-side cache is session-only — callsigns are re-sent by the client on connect.

Earbud Clothing Detection

Automatically enable earbuds mode when a player wears specific clothing items (hats, earpieces, accessories). Configured through the admin panel — no restart required.

Each entry in the earbudItems list defines a clothing slot and drawable ID to match:

Behaviour:

• Checked every 7 seconds via a polling thread
• Only triggers on state change (wearing → not wearing or vice versa)
• If the player manually toggles earbuds, the auto-detection respects that override until the clothing state changes again

GPS & Signal

How signal strength works

Client-side: distance to the nearest tower in Config.signalTowerCoordinates converts to a 1–5 bar reading using signalFalloffRate (higher = bars drop faster).

With signalDegradationEnabled, low bars also garble audio — clean at full bars, up to signalDegradationIntensity at zero bars.

Put towers at real comm-tower locations on your map; the demo coords are examples.

Emergency

Misc

Default Layouts

Default radio model per context. Configurable via admin panel or /tradio > Set as Default Layout for Vehicle.

HandheldUnfocused is only used when the player enables Separate On-Foot Focus Layout in /tradio, giving the radio a different model when it is not focused.

Radio models are auto-discovered from client/radios/ subfolders.

Custom Tones

Tones are defined in client/radios/default/tones.json. Each key is the tone name (case-insensitive). Tones can be either oscillator sequences (synthesised in the browser) or WAV files dropped into sounds/.

Oscillator Tones

Synthesised on the fly by the Web Audio API:

{
  "BEEP": [{ "freq": 910, "duration": 250 }],
  "ALERT_A": [
    { "freq": 600, "duration": 150, "delay": 200 },
    { "freq": 600, "duration": 150 }
  ]
}

Sequences play their steps in order; use delay to space them out.

WAV File Tones

Set a tone's value to an empty array [] to play a WAV file instead. The file name must match the tone key in lowercase, with the extension .wav.

{
  "ECHO": [],
  "PANIC": []
}

"ECHO": [] looks for echo.wav in the model's sounds/ folder (or client/radios/default/sounds/ if the model doesn't override it). Supported formats: .wav, .mp3, .ogg (.wav recommended for lowest latency).

WAV tones work everywhere oscillator tones do: in-game radio, 3D spatial audio, and the dispatch panel.

Standard Tone Catalog

Tommy's Radio plays specific tones at specific events. Overriding these in tones.json changes what users hear — you can customise or replace any of them.

PTT tones (heard by the talker on their own radio):

TX tones (heard by receivers when someone else keys up):

The engine picks the correct variant based on channel type — so if you set a distinctive PTT_TRUNKED, users will hear it only when they key up on a trunked frequency. Leave a variant undefined (or keep it empty) to silence it for that context.

General-purpose tones used by alerts and dispatch:

Any tone name can also be passed to playToneOnChannel / playToneOnSource exports or the /radio/dispatch/tone HTTP endpoint.

Background Transmission Sounds

The following WAV files in client/radios/default/sounds/ aren't played via tones.json — they're referenced directly by the transmission-effect system and can't be renamed:

Drop in replacements with the same filenames to customise. These files are served under /client/radios/default/sounds/ and also via the legacy /audio/ redirect.

Per-Model Overrides

Place a tones.json in client/radios/YOUR-MODEL/ to override individual tones for that model. Keys present take precedence; any key not defined falls back to client/radios/default/tones.json. WAV files override the same way — a sounds/echo.wav in the model folder takes priority over the default one.

This lets you give each radio model its own "personality" — a handheld can have a different PTT chirp than a mobile unit, for example.
